I was tasked at VALHADEN Studios to develop the manufacturing for the Red Dot recognized launch product of our Pet focused start up, Clara Beara.
Clara Beara | Manufacturing Design | Procedural Stamping Dies
The Bag Catch.

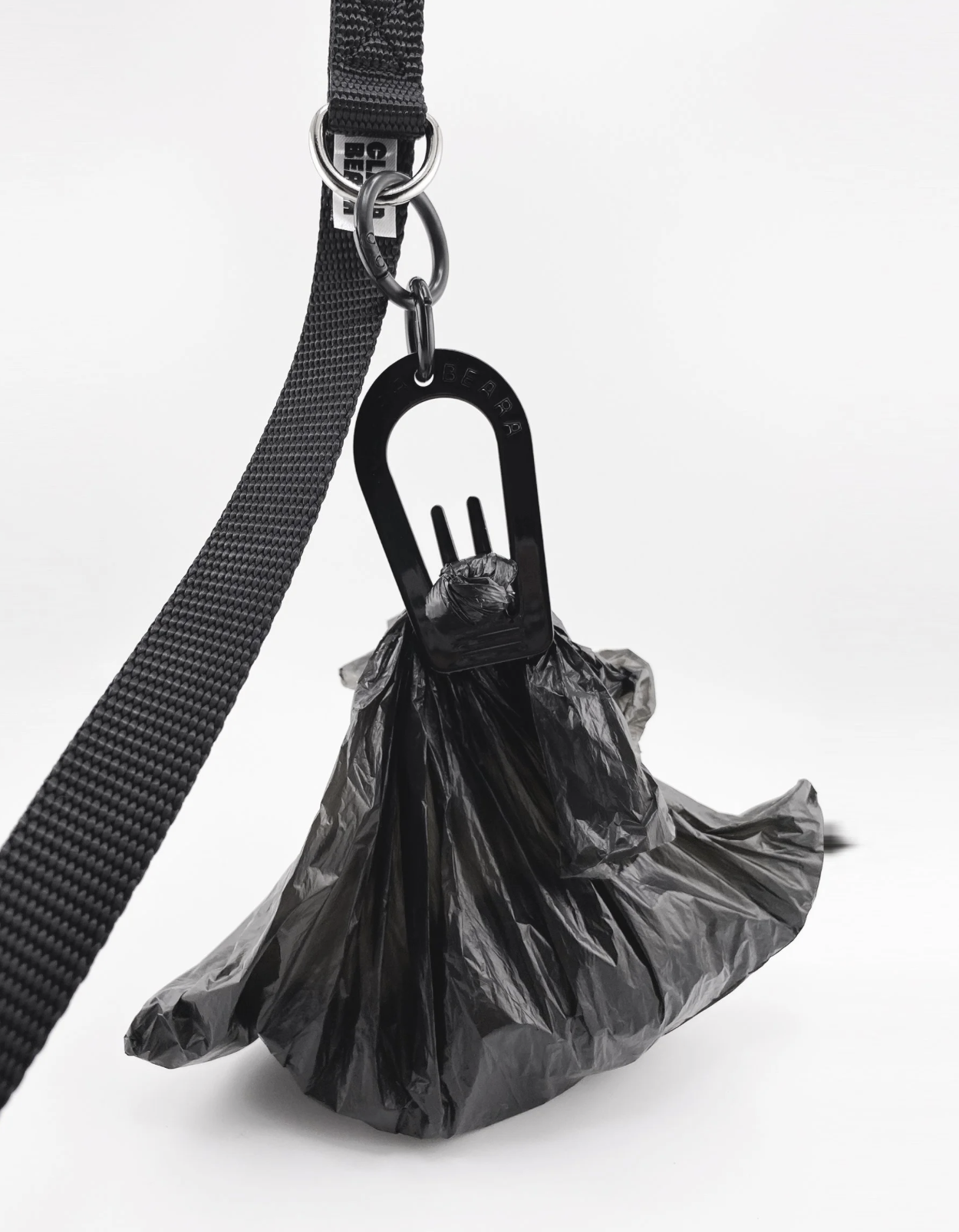

The BagCatch is a convenient way to carry your dog’s poop bag while while out on walks.
Created by designers of the the Valhaden Team.

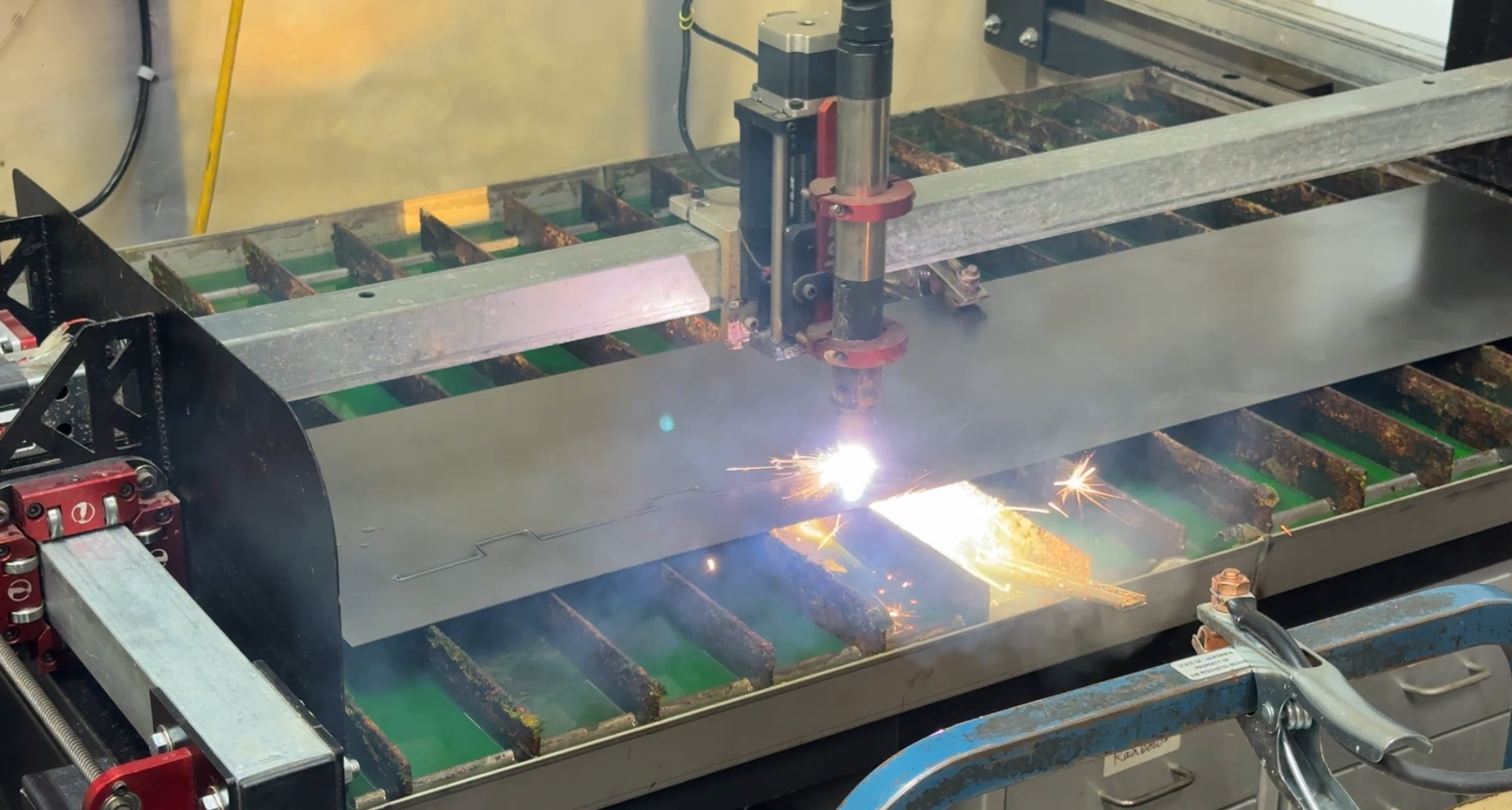

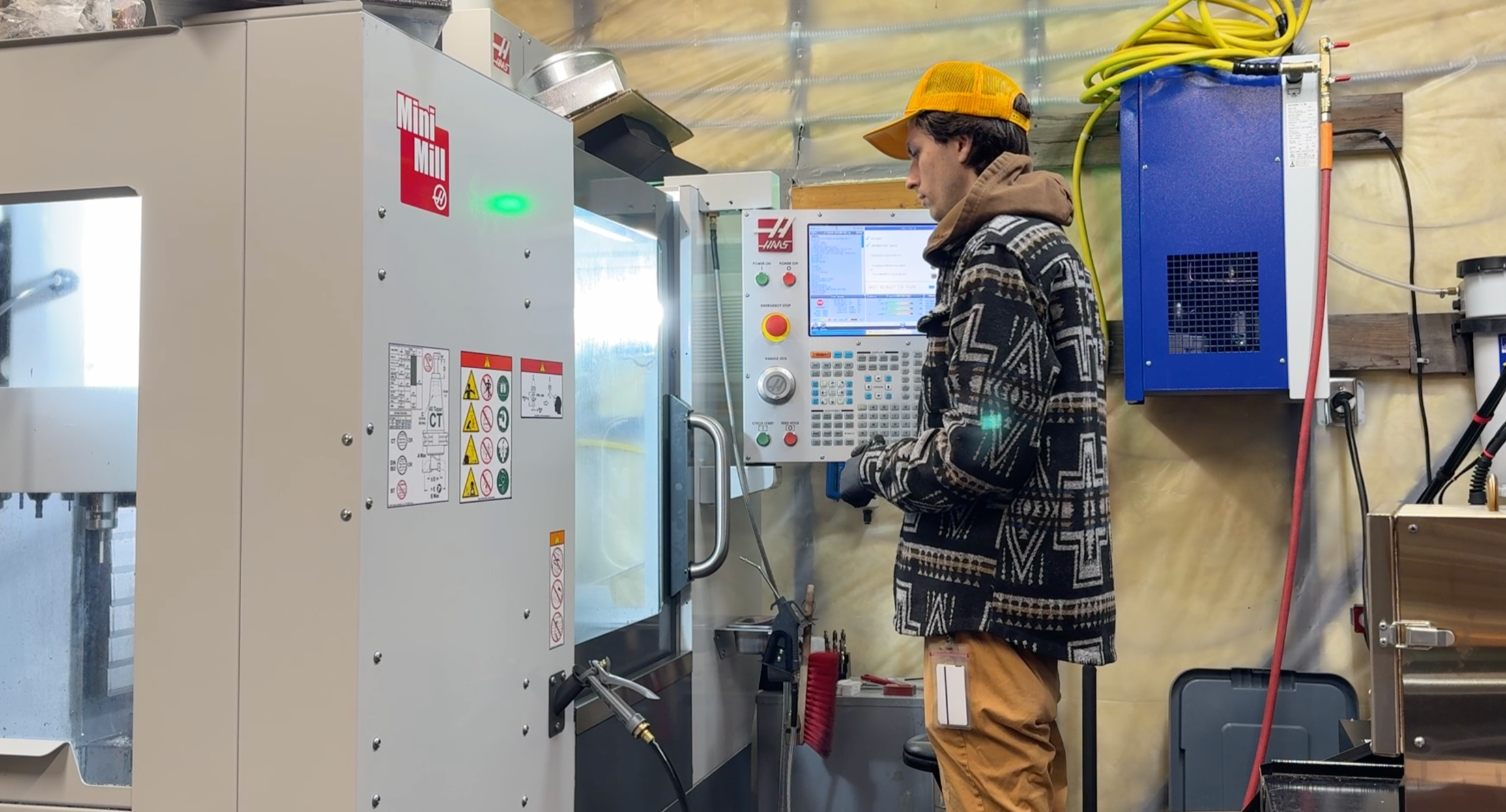

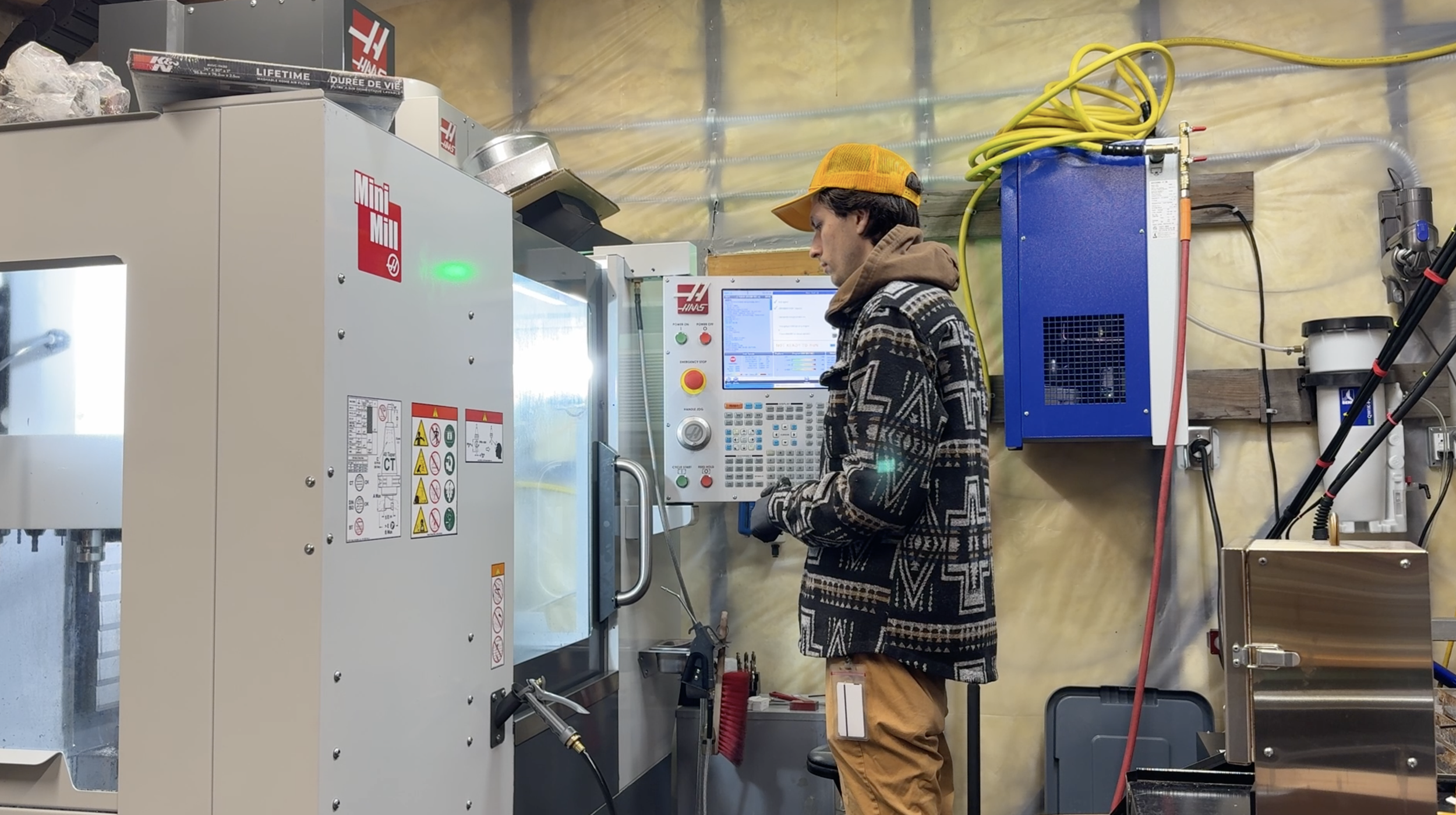

Starting with a hand made prototype fabricated by our CEO Shawn, I taught myself CNC machining, plasma cutting, tool steel heat treating and tool and die punch design to produce the final tooling.
Manufacturing Ideation.

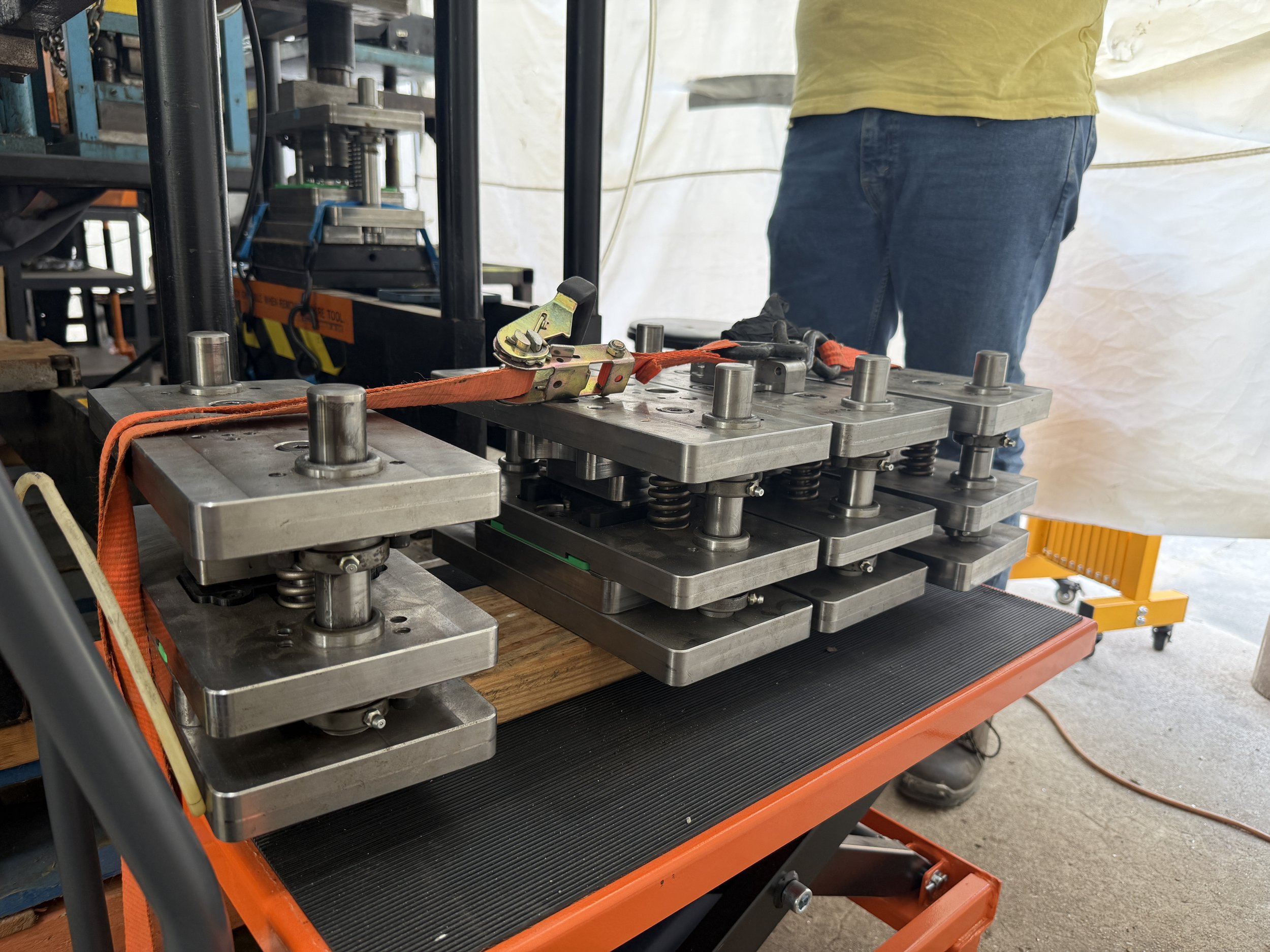

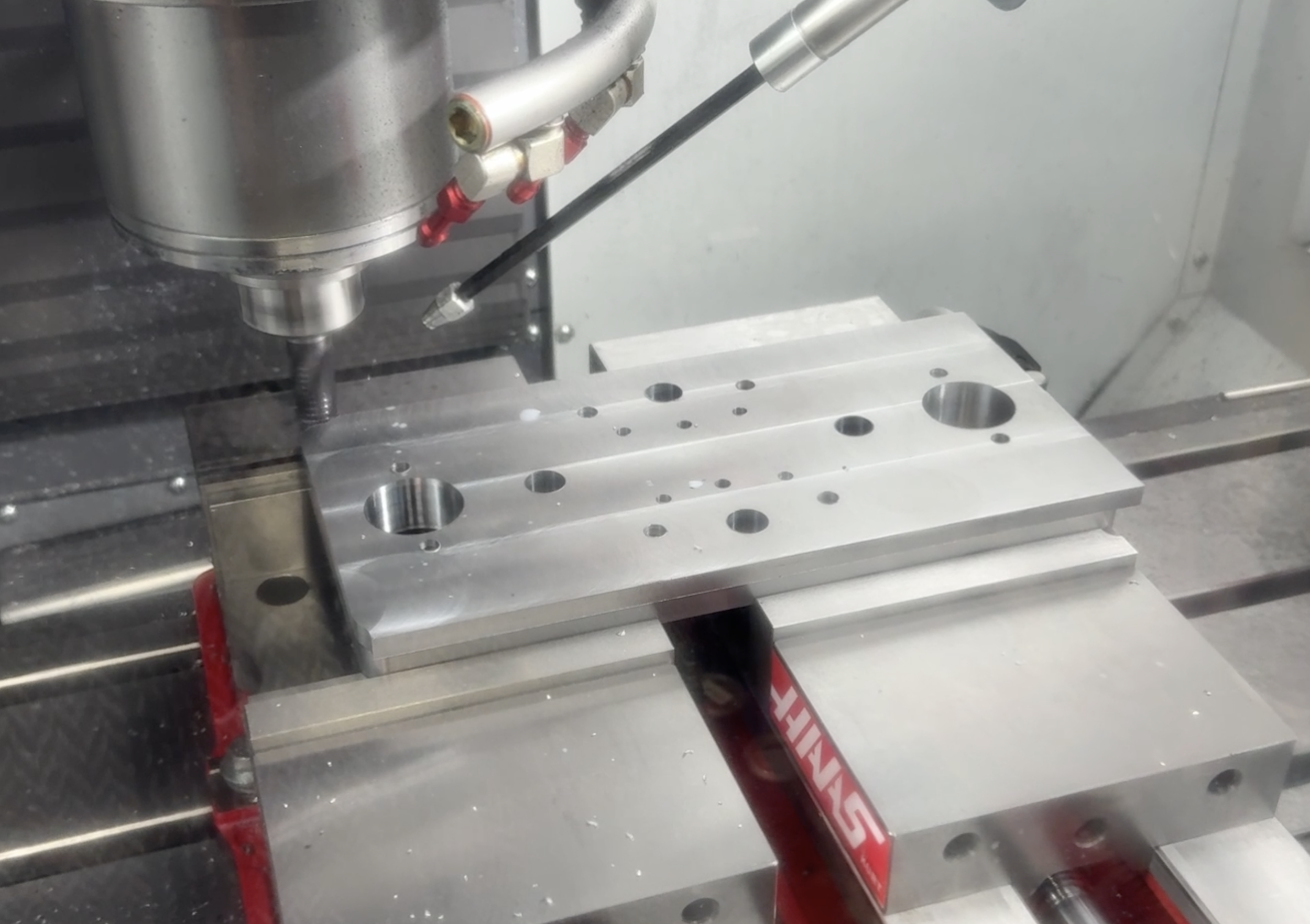

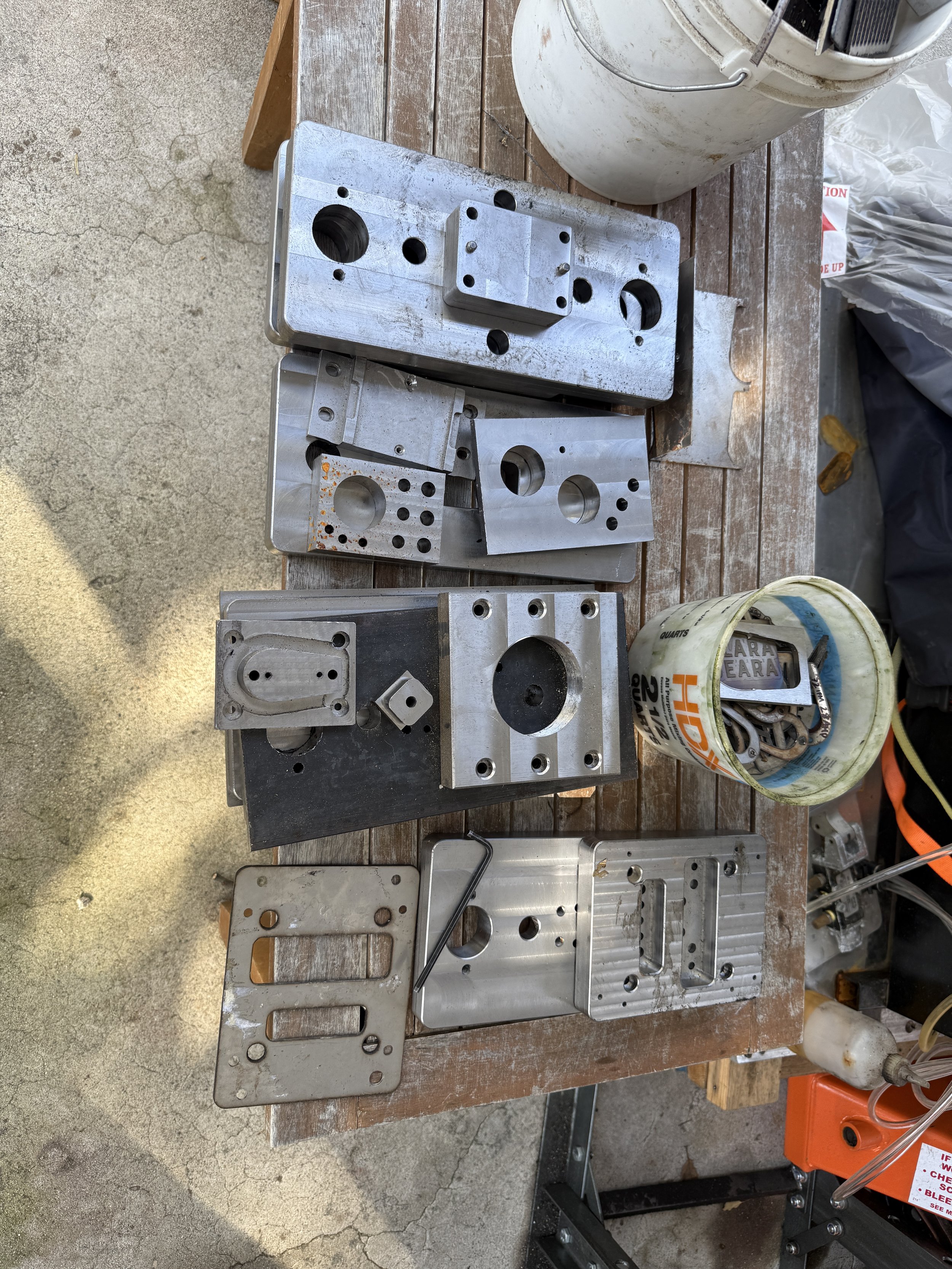

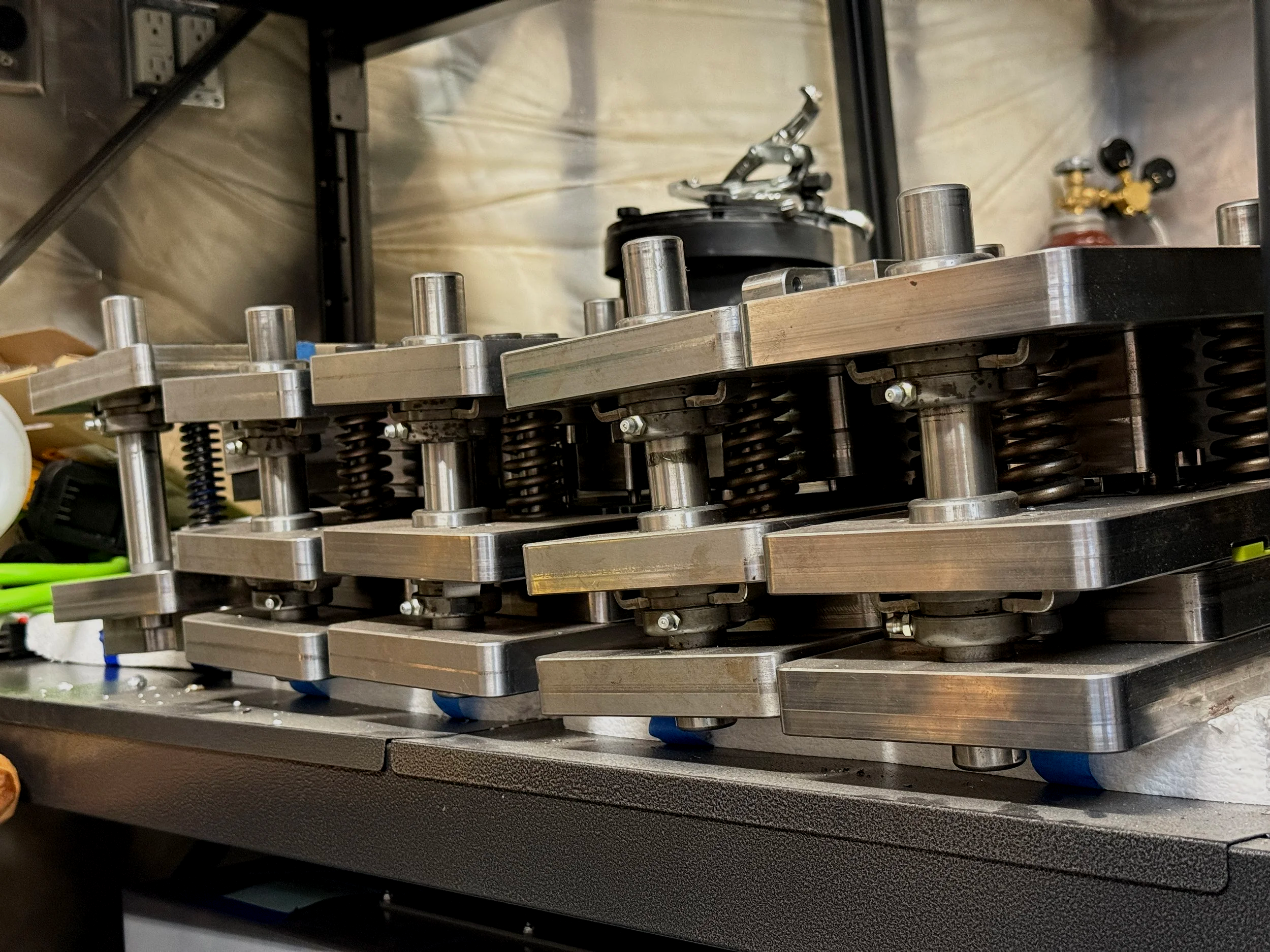

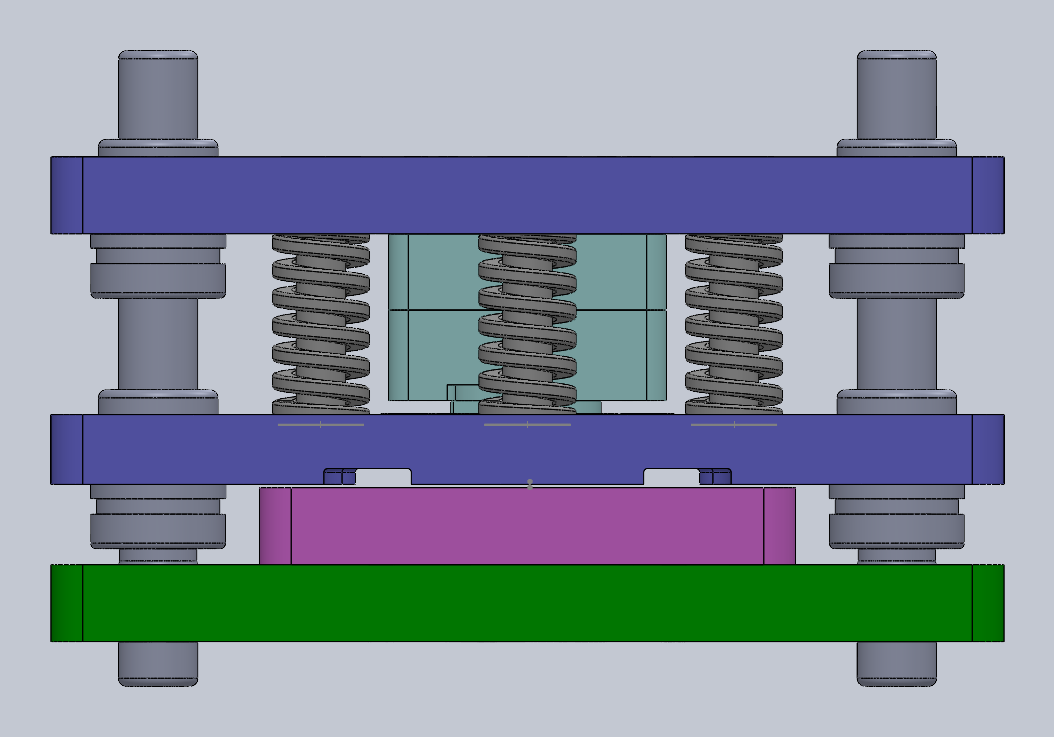

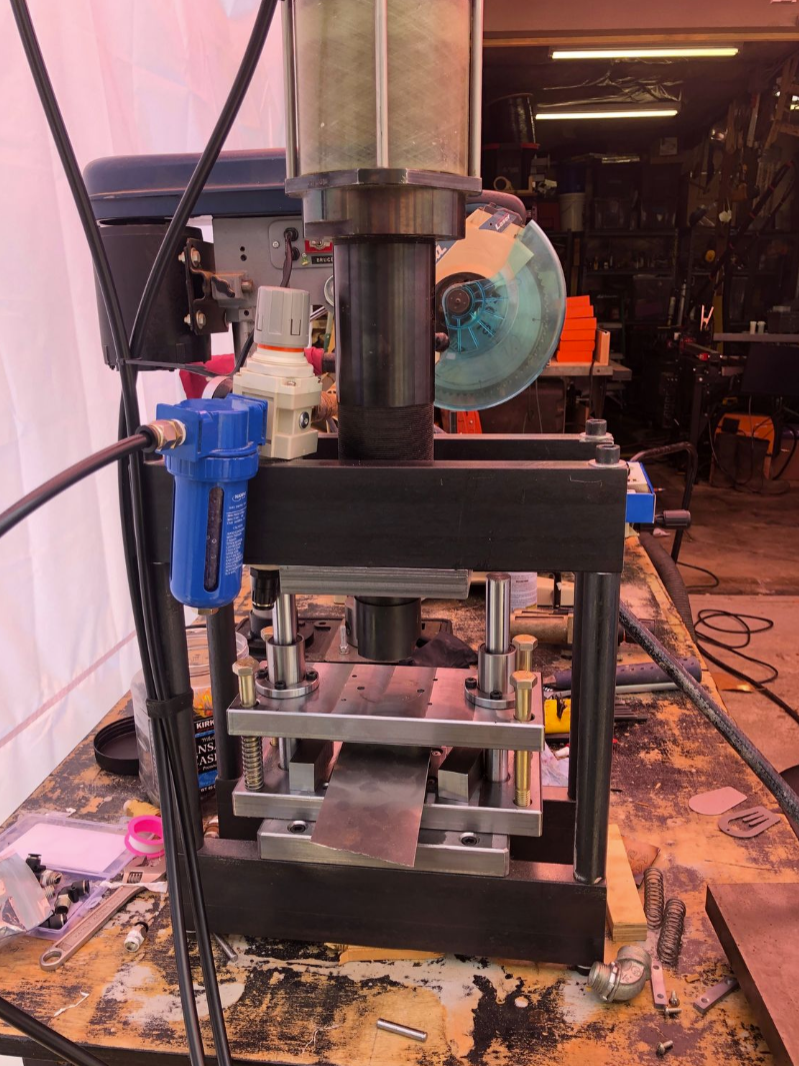

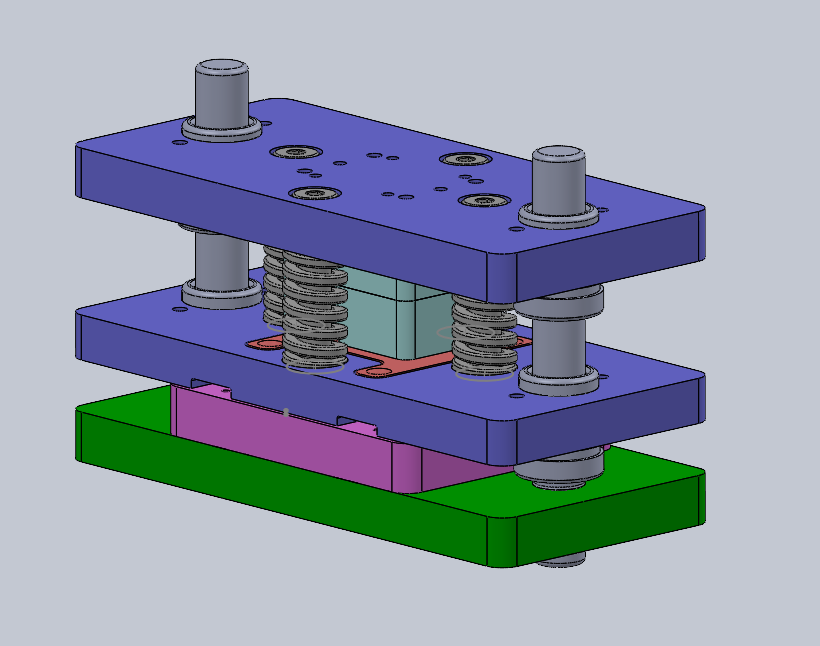

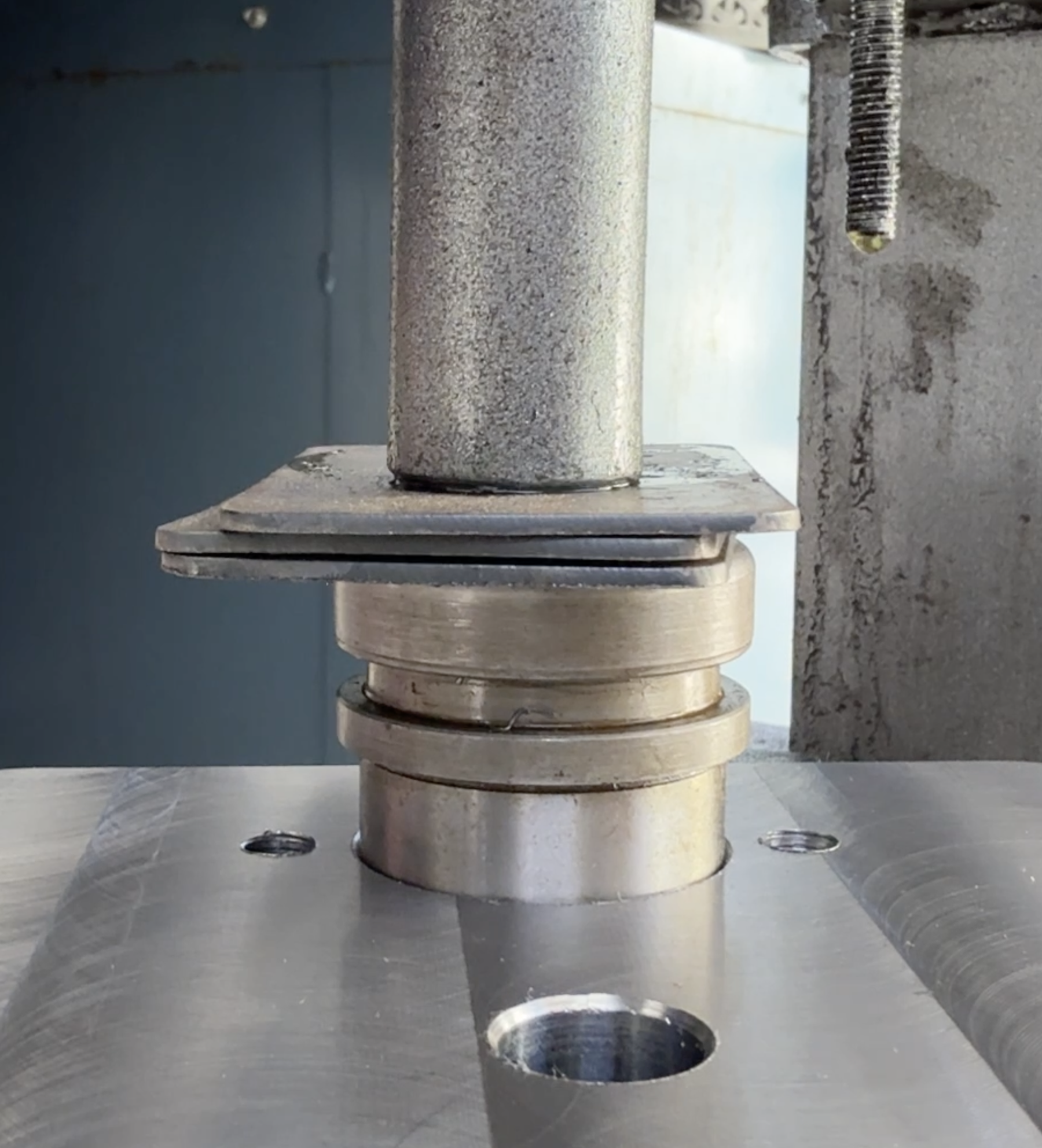

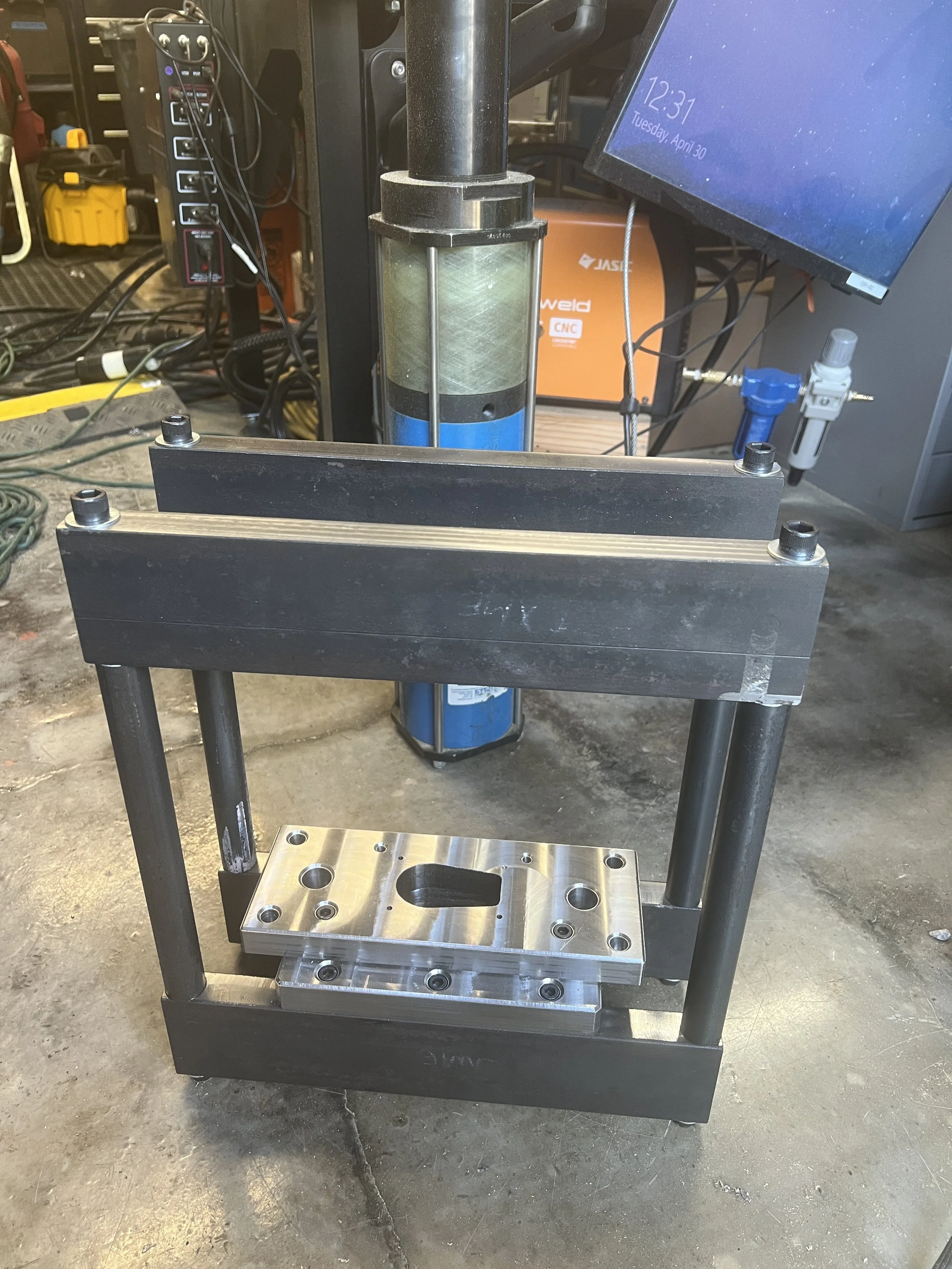

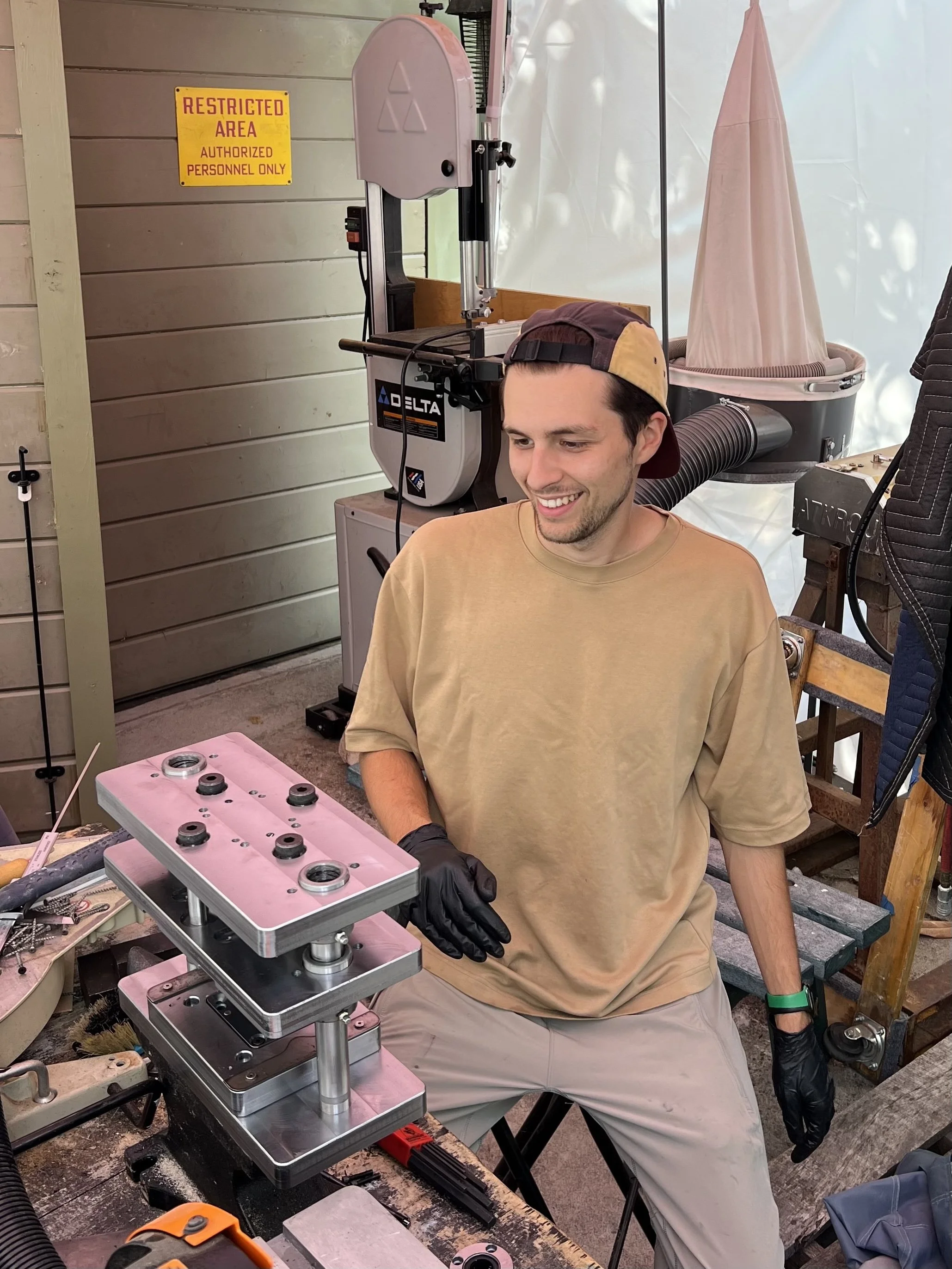

Operating examples of my punch assemblies

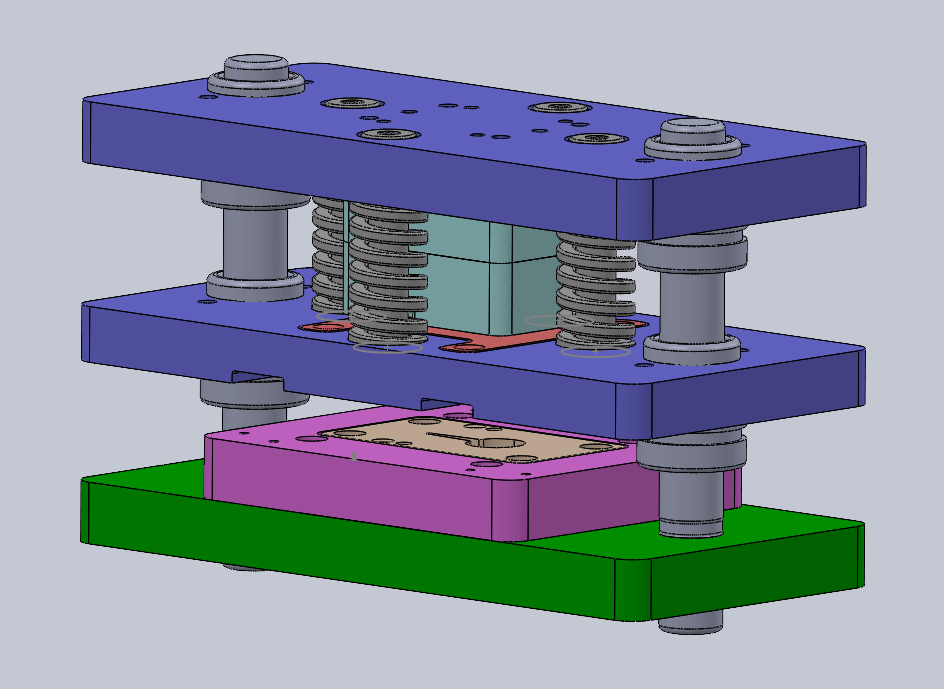

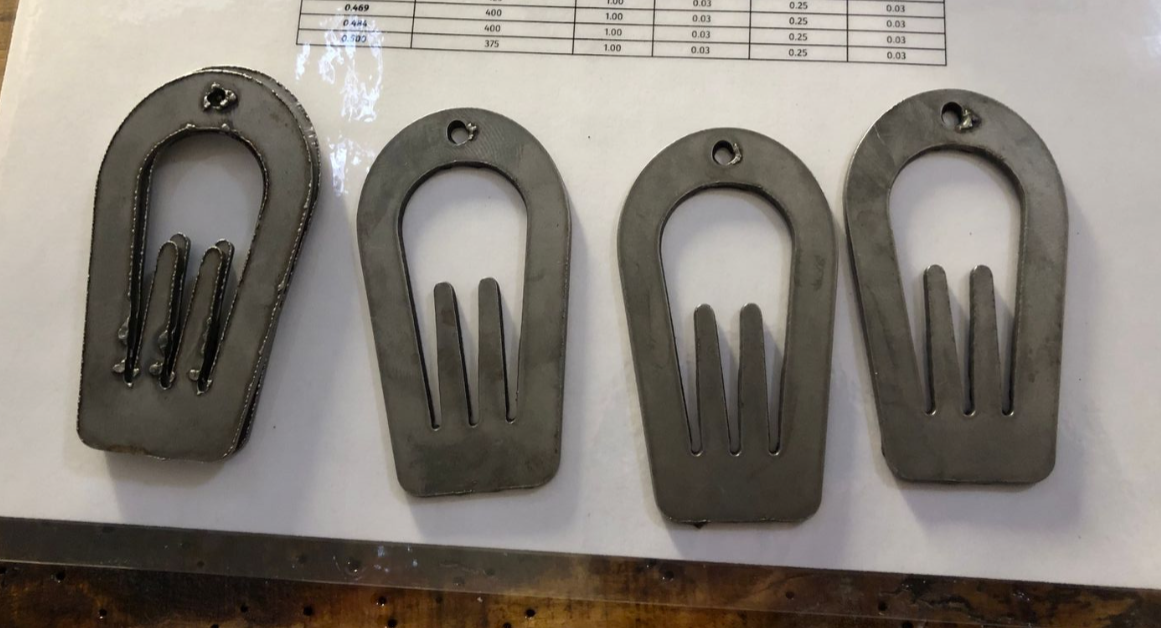

The form factor of the bag catch made it particularly challenging to design the punch/stamping steps. After lots of testing, it came down to a six step process not including the pre and post processing.

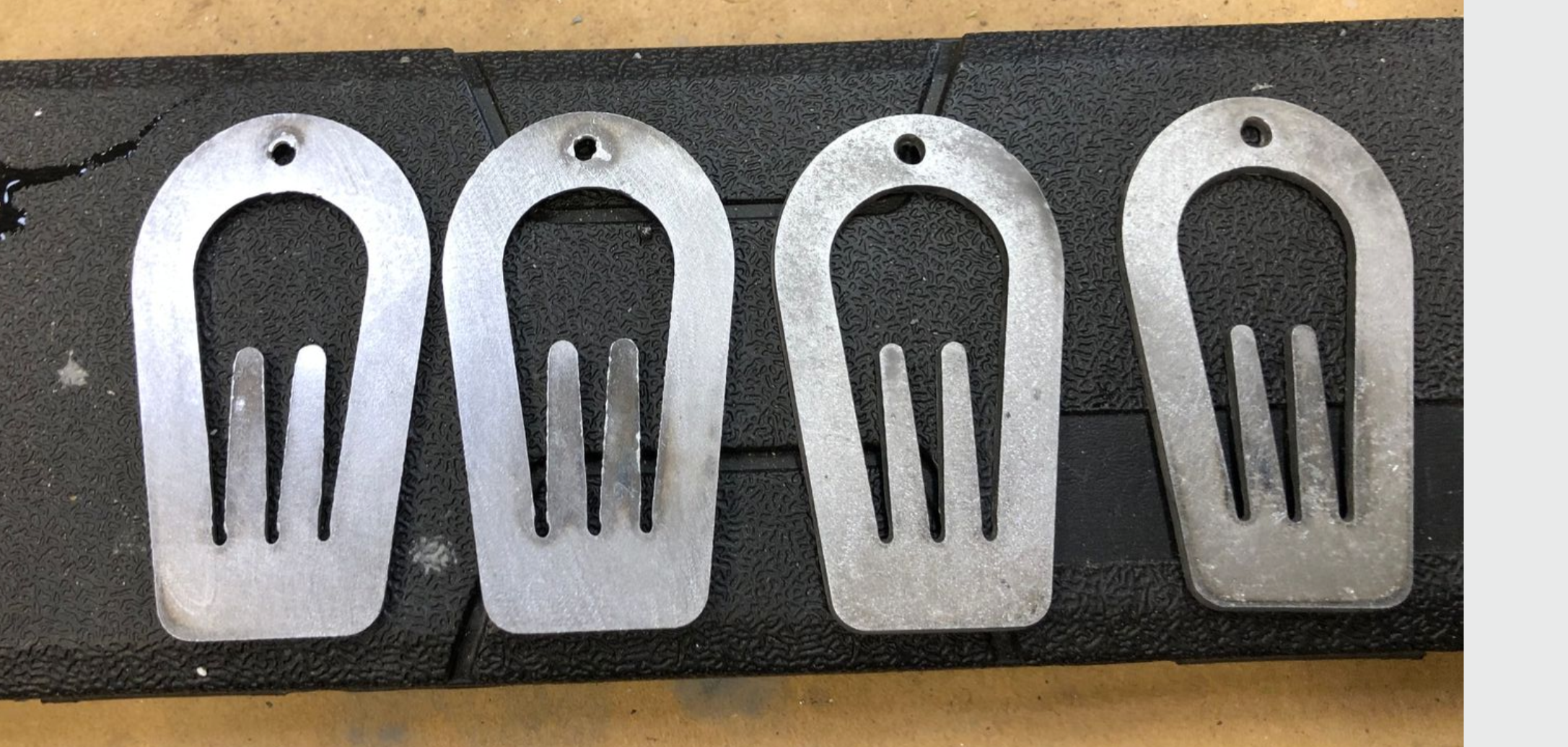

Outer Forks
Logo Stamp
Alignment Pins
Flattening
Punch Out
Middle Fork
Tooling Production.
-
![]()

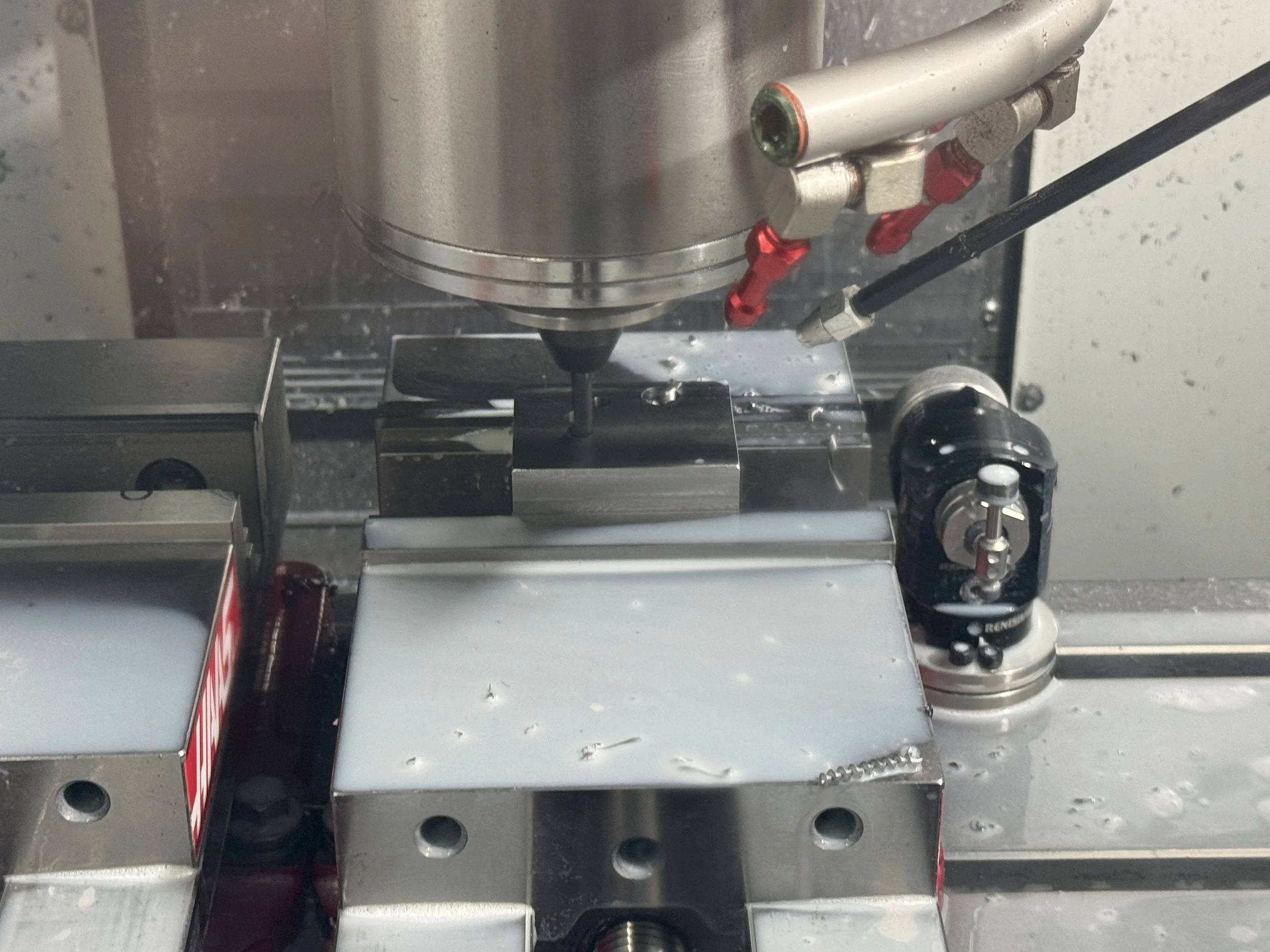

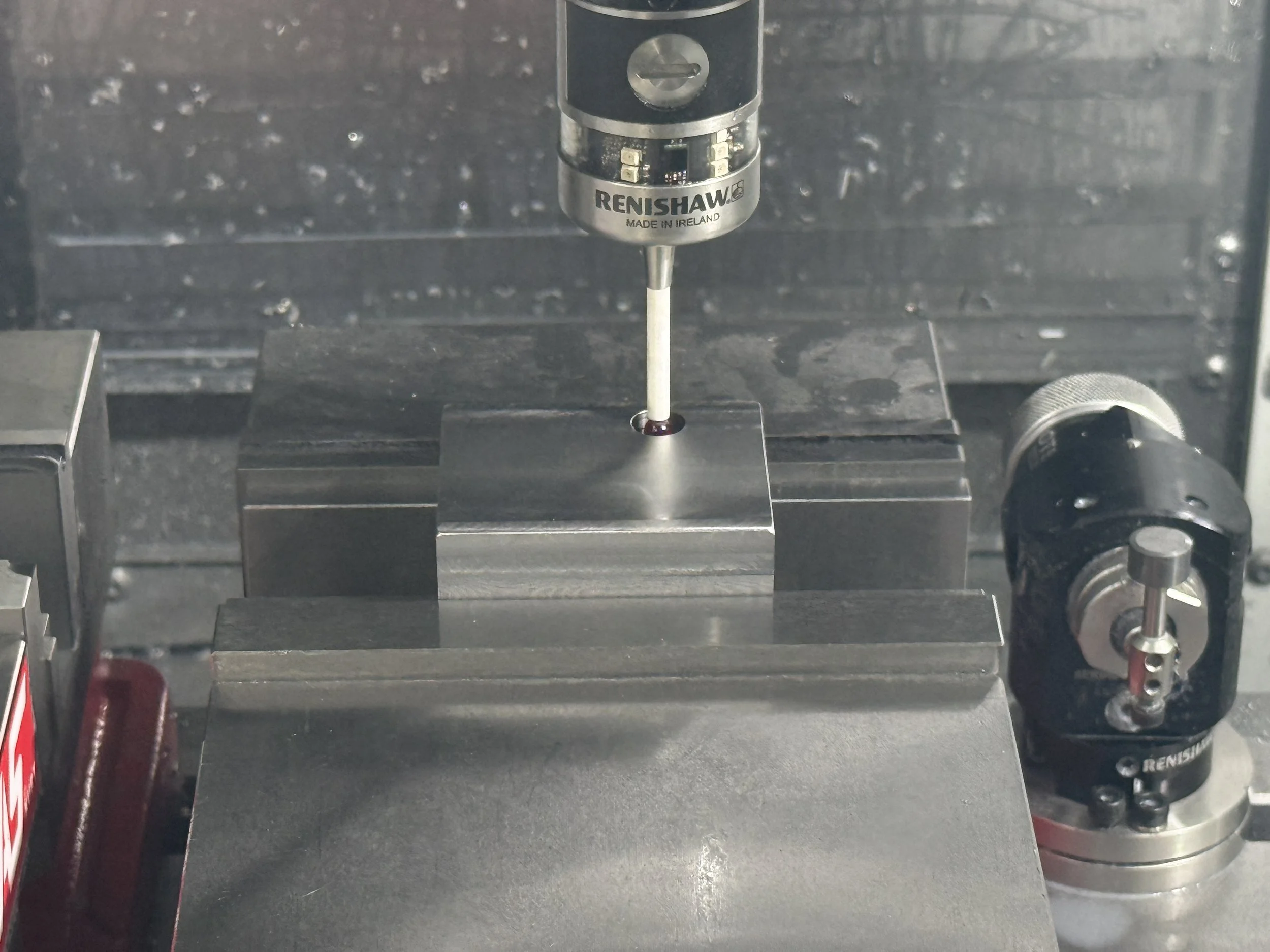

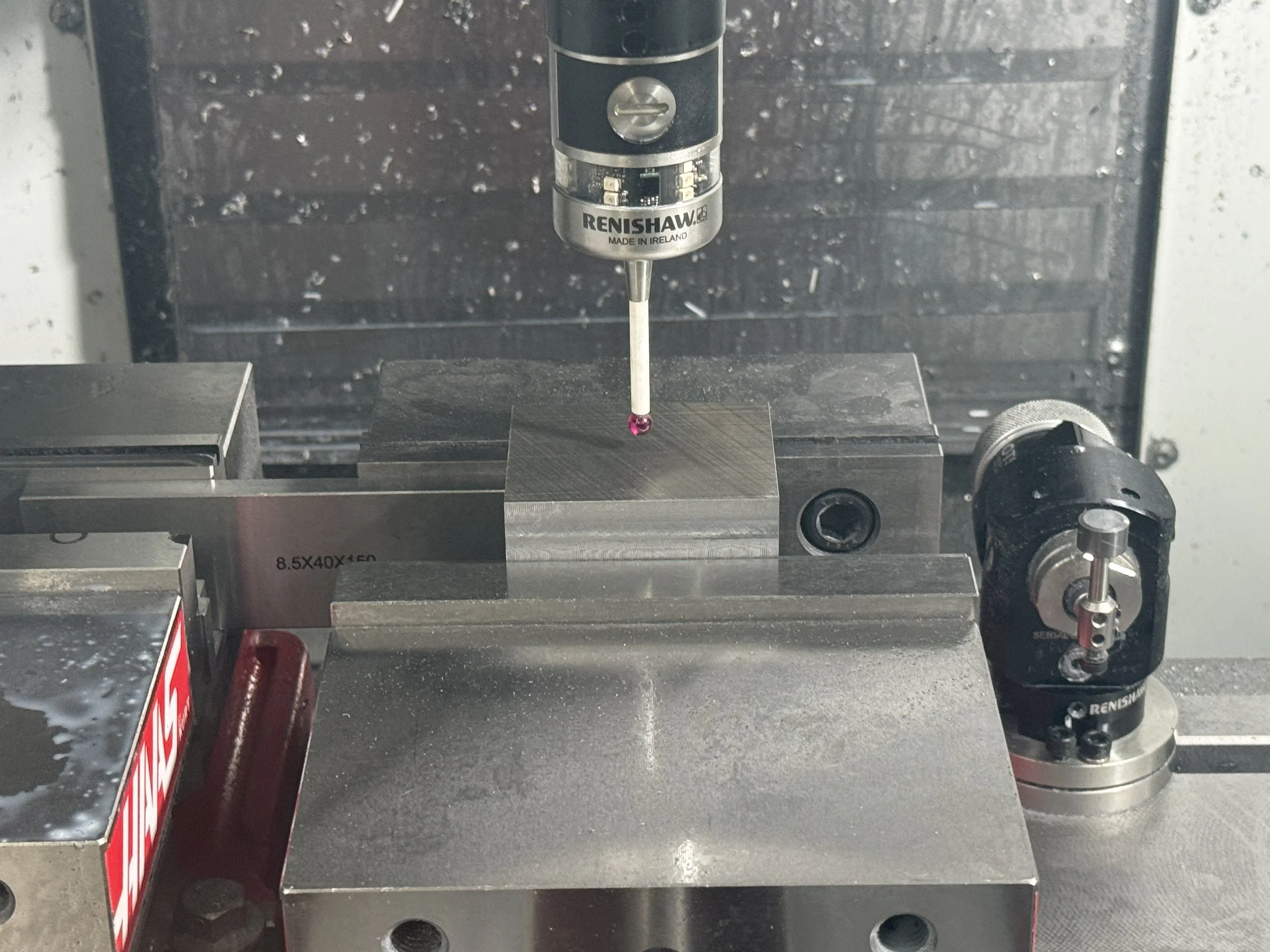

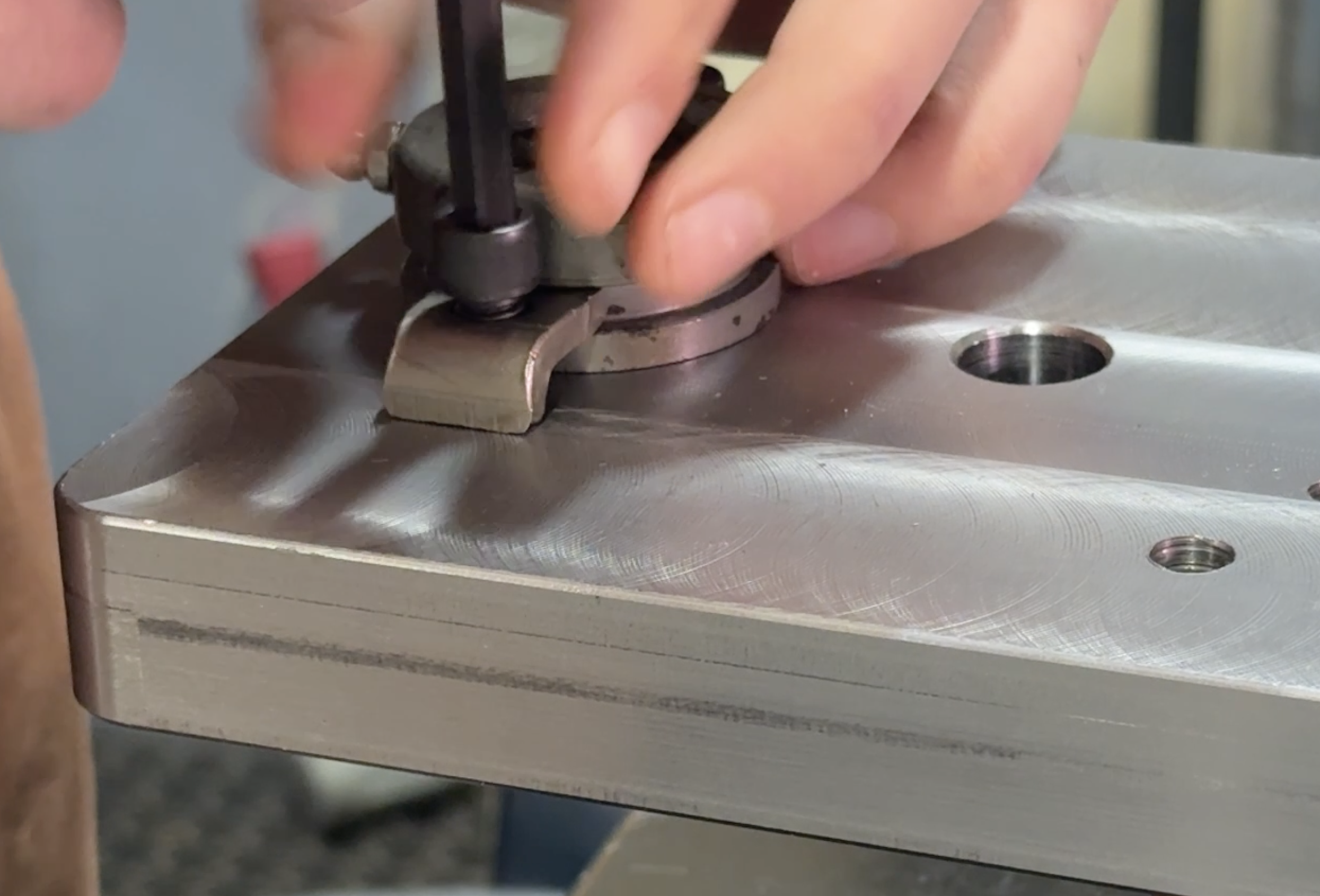

Finding center on the stock.
-
![]()
Adding and alternative indicator hole for the flip operation.
-
![]()

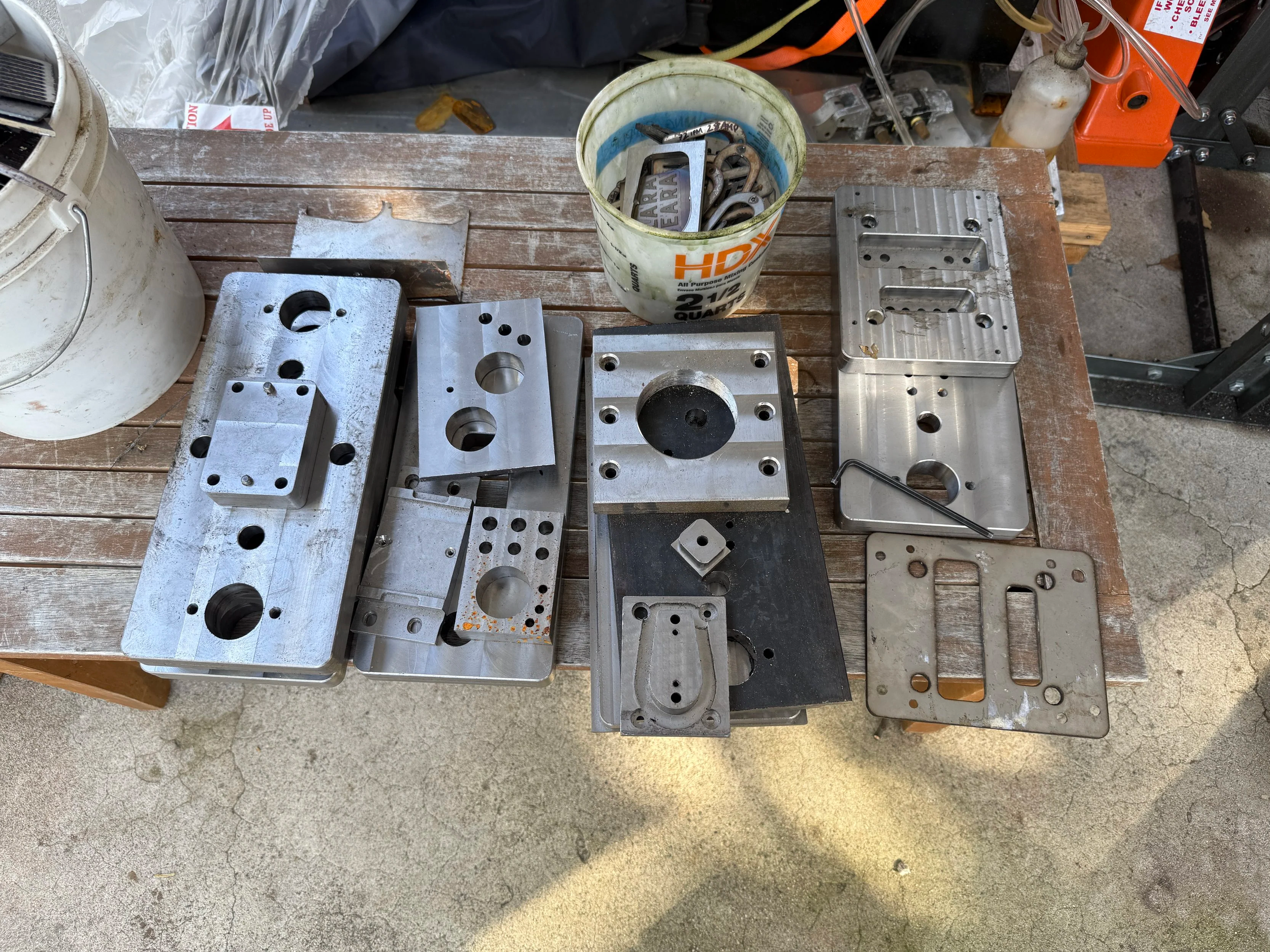

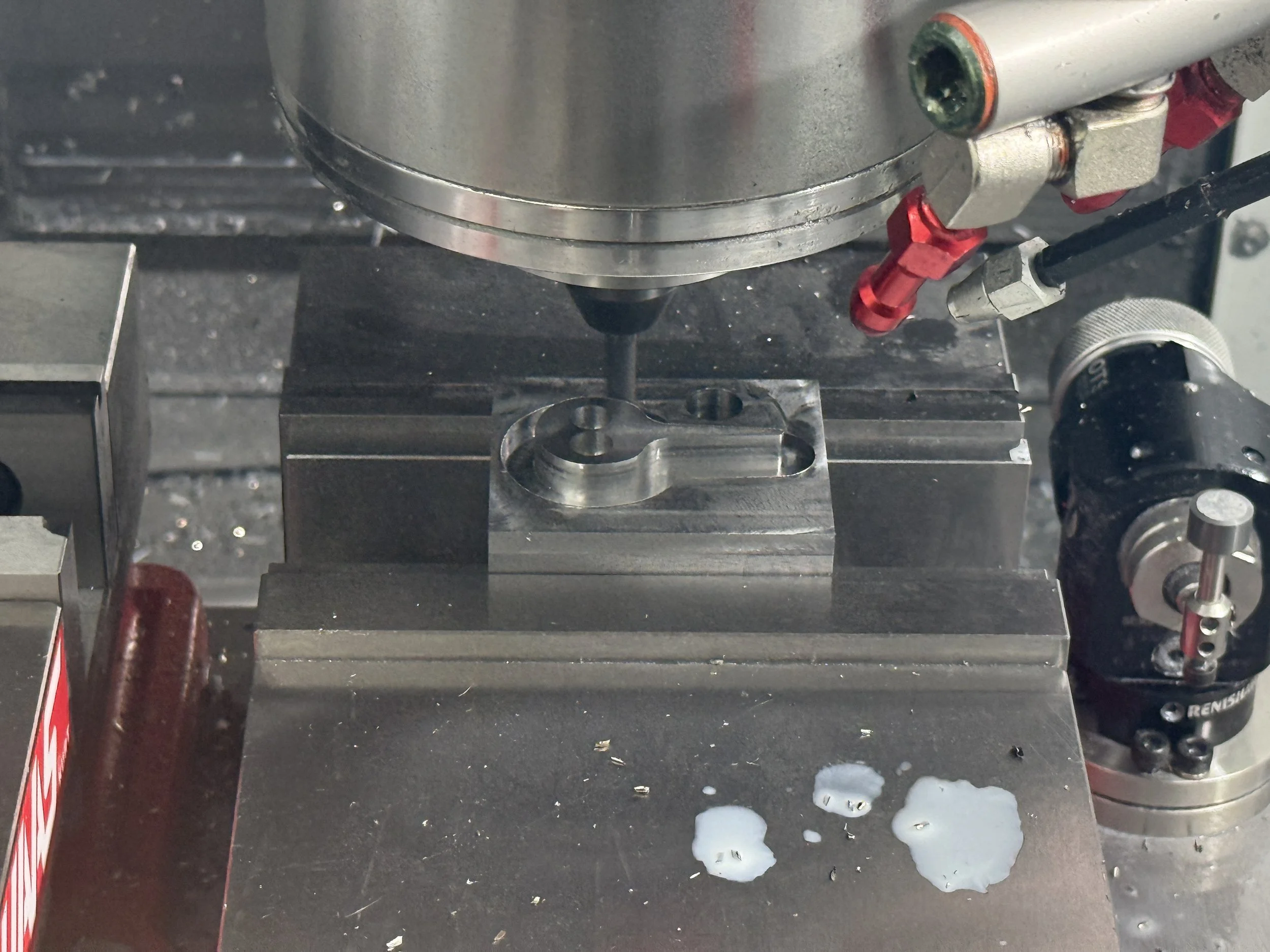

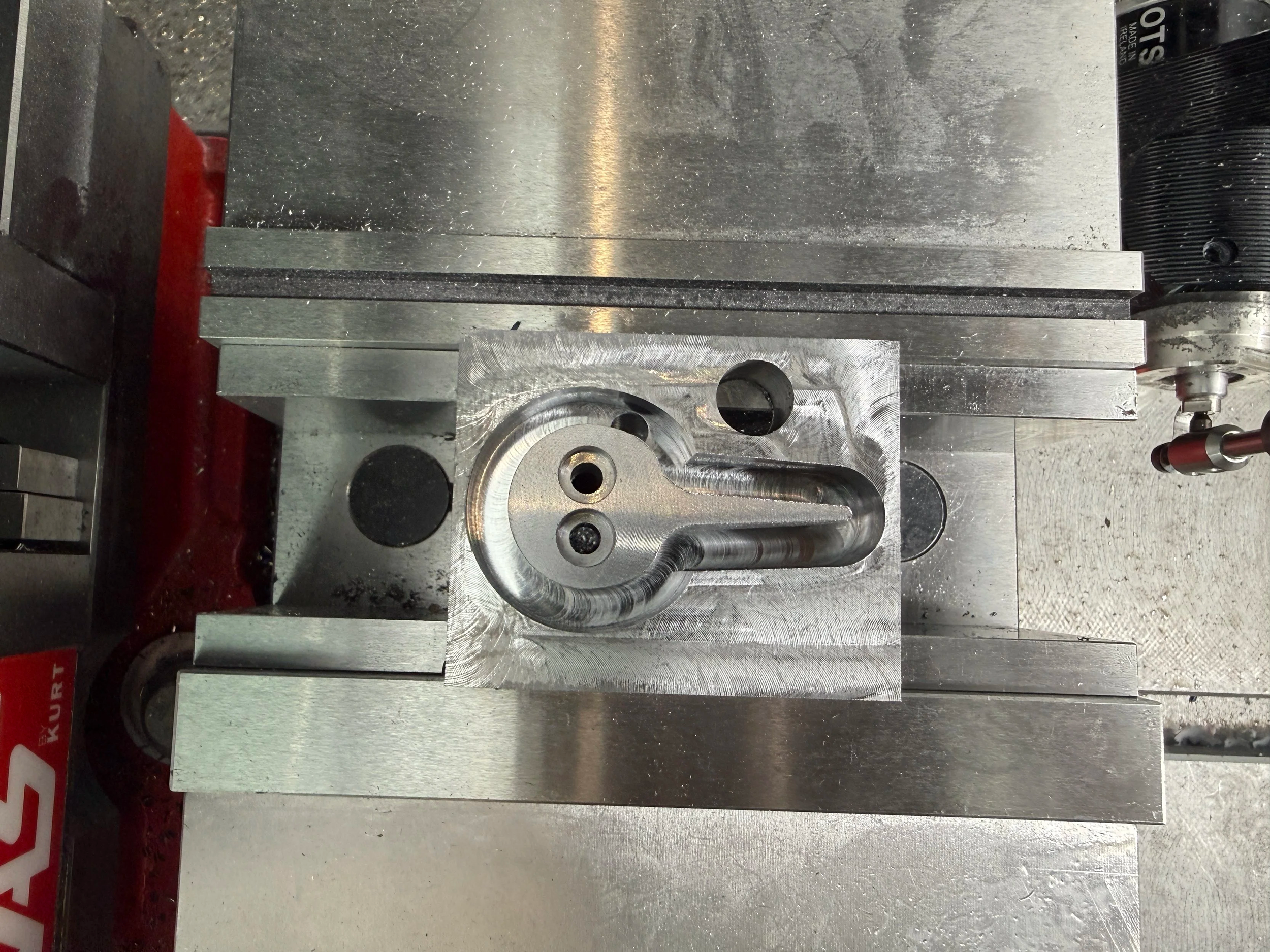

Roughing out the material.
-
![]()
finishing the surfaces up to tolerance.
-
![]()
Topside complete.
-
![]()

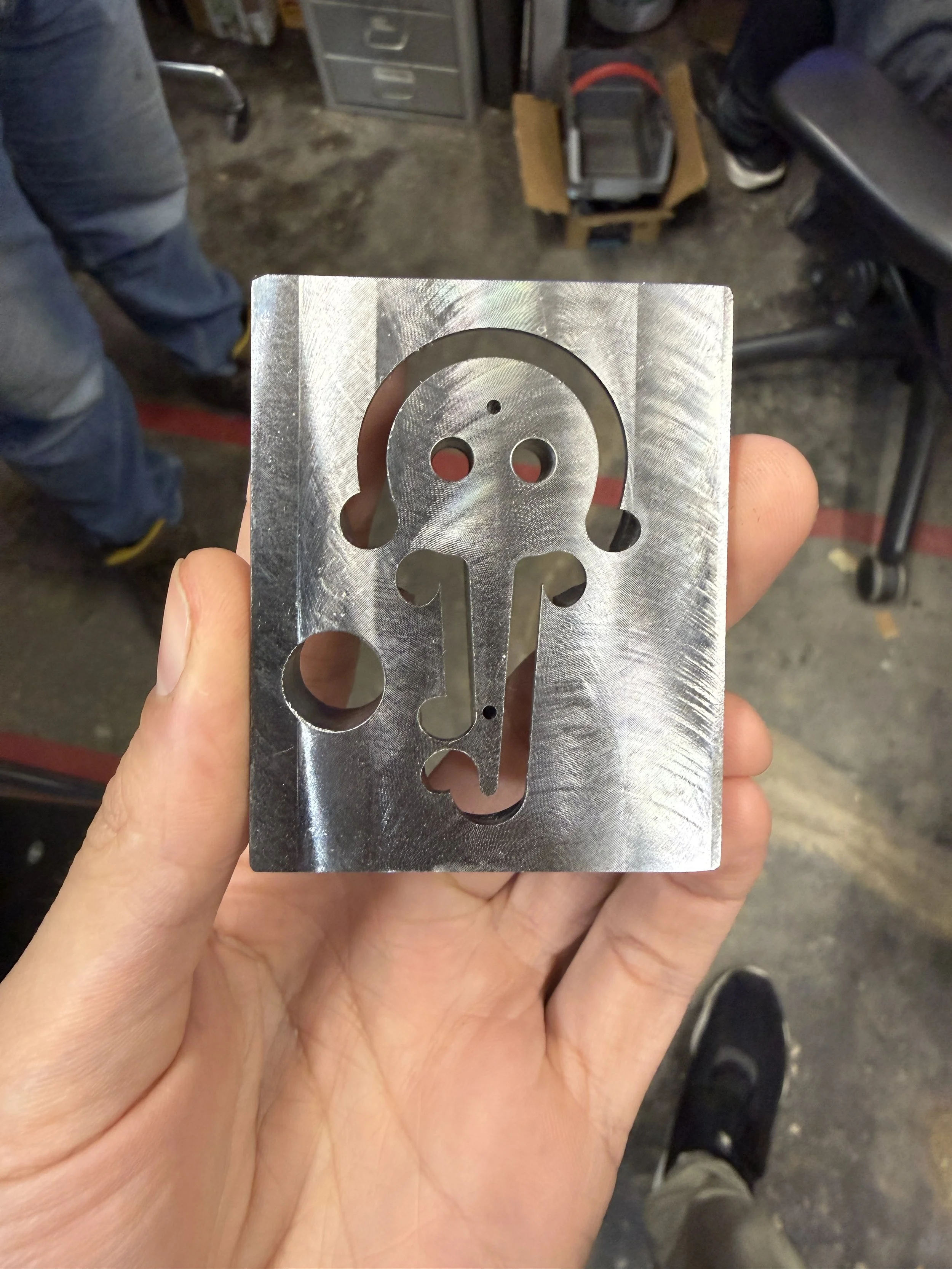

Flip operation complete, next cut out the part and clean up the tabs.
Heat Treating Process.
Tool steel wrap

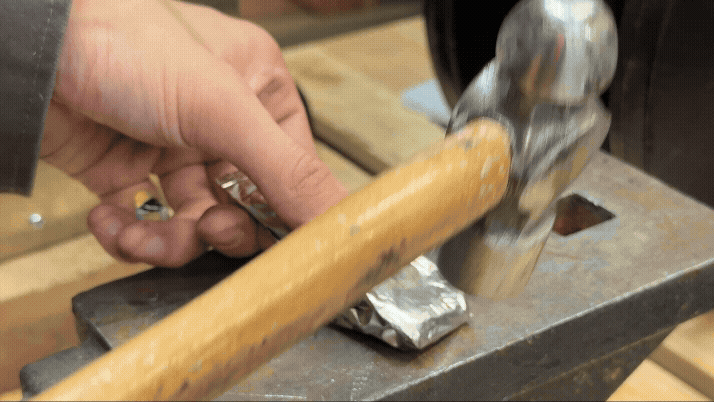

Sealing the part

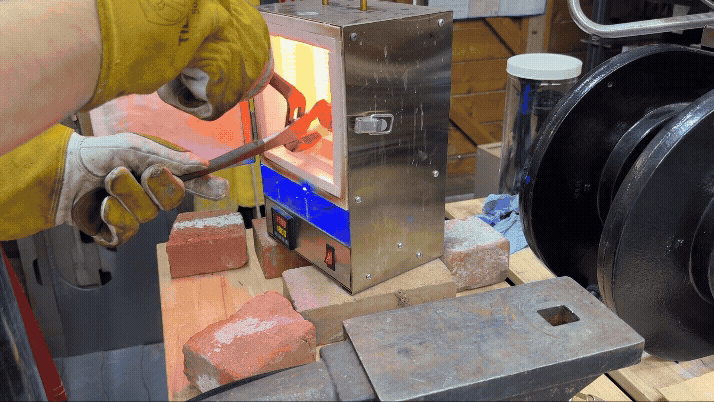

Heat treating

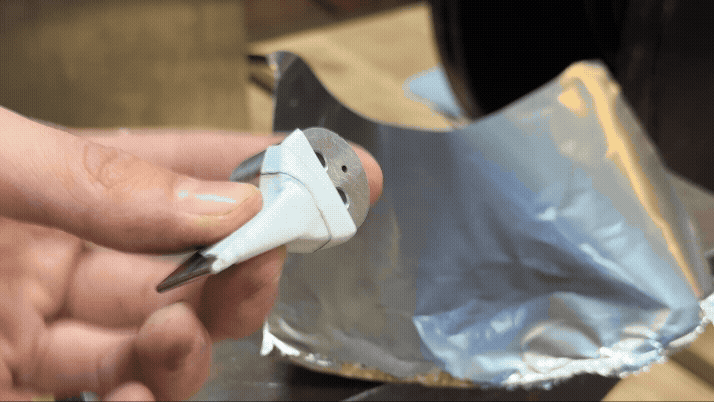

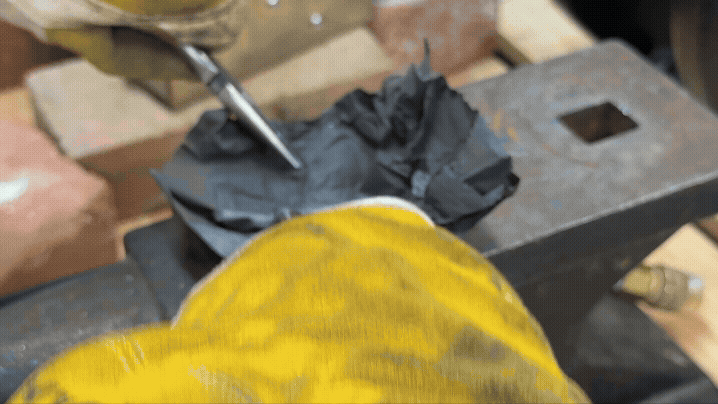

Unwrapping the part
