MP5 Paintball Magazine

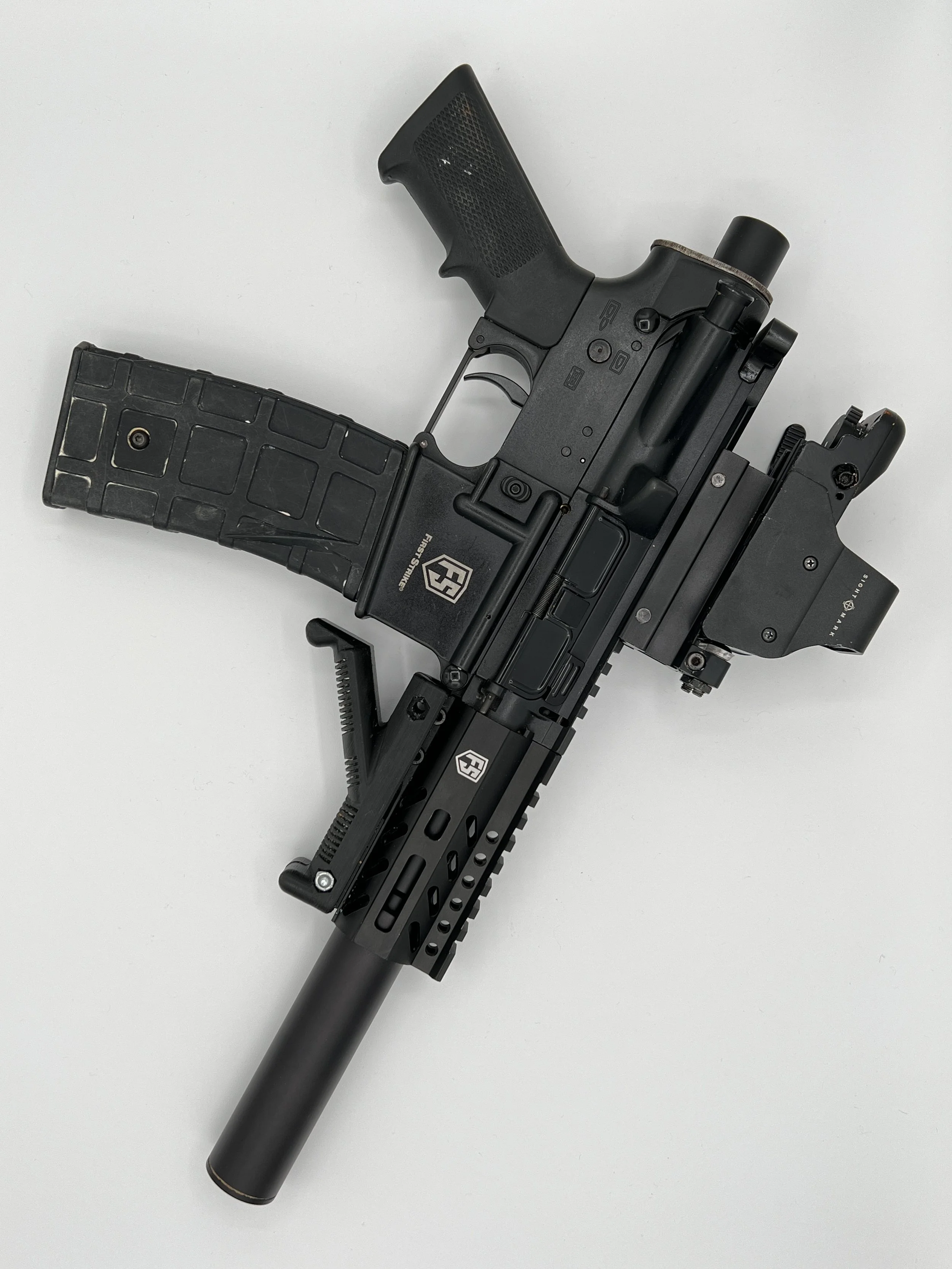

1 Week|Individual Project The MP5 magazine is a fully functioning 3D printed ABS plastic alternative lightweight feed option for the First Strike T15 paintball marker.
Swap out the original magazine with a quick insert to resize the magwell.
The magazine has a an internal locking mechanism that holds the follower down until it is inserted into the magwell.

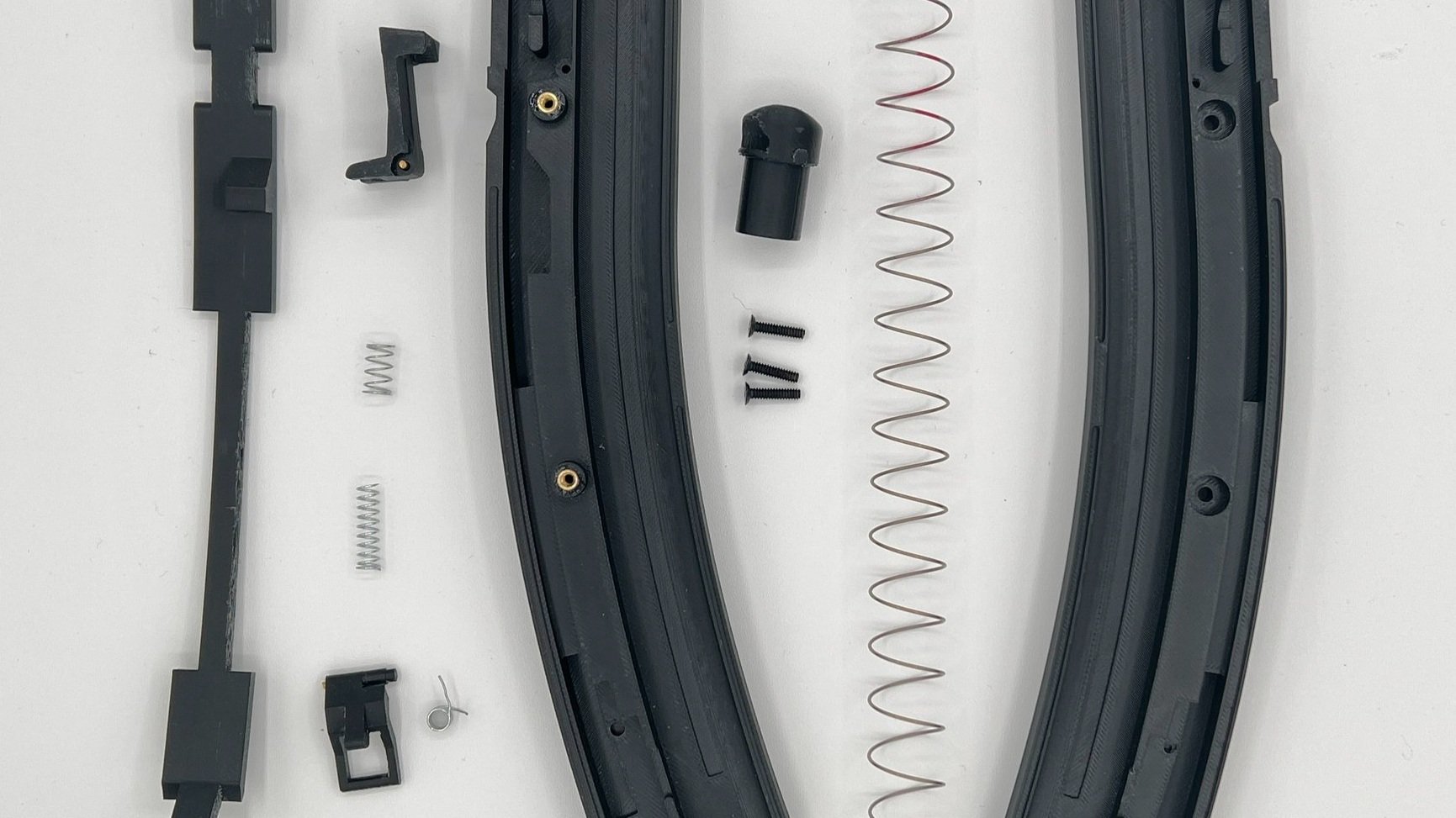

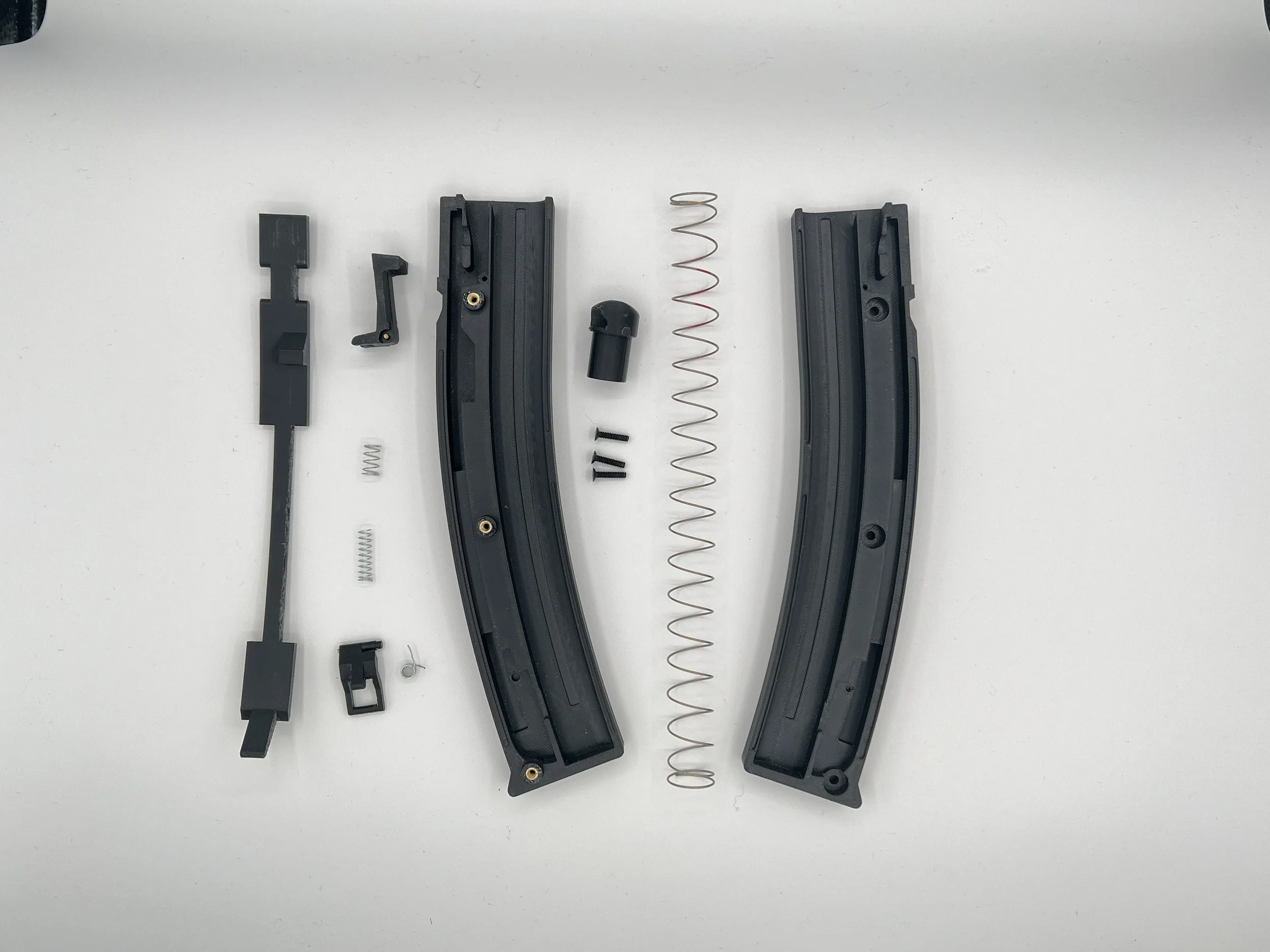

Full assembly, the final product is made of 3D printed ABS, various spring sizes, brass pins, threaded inserts and screws.

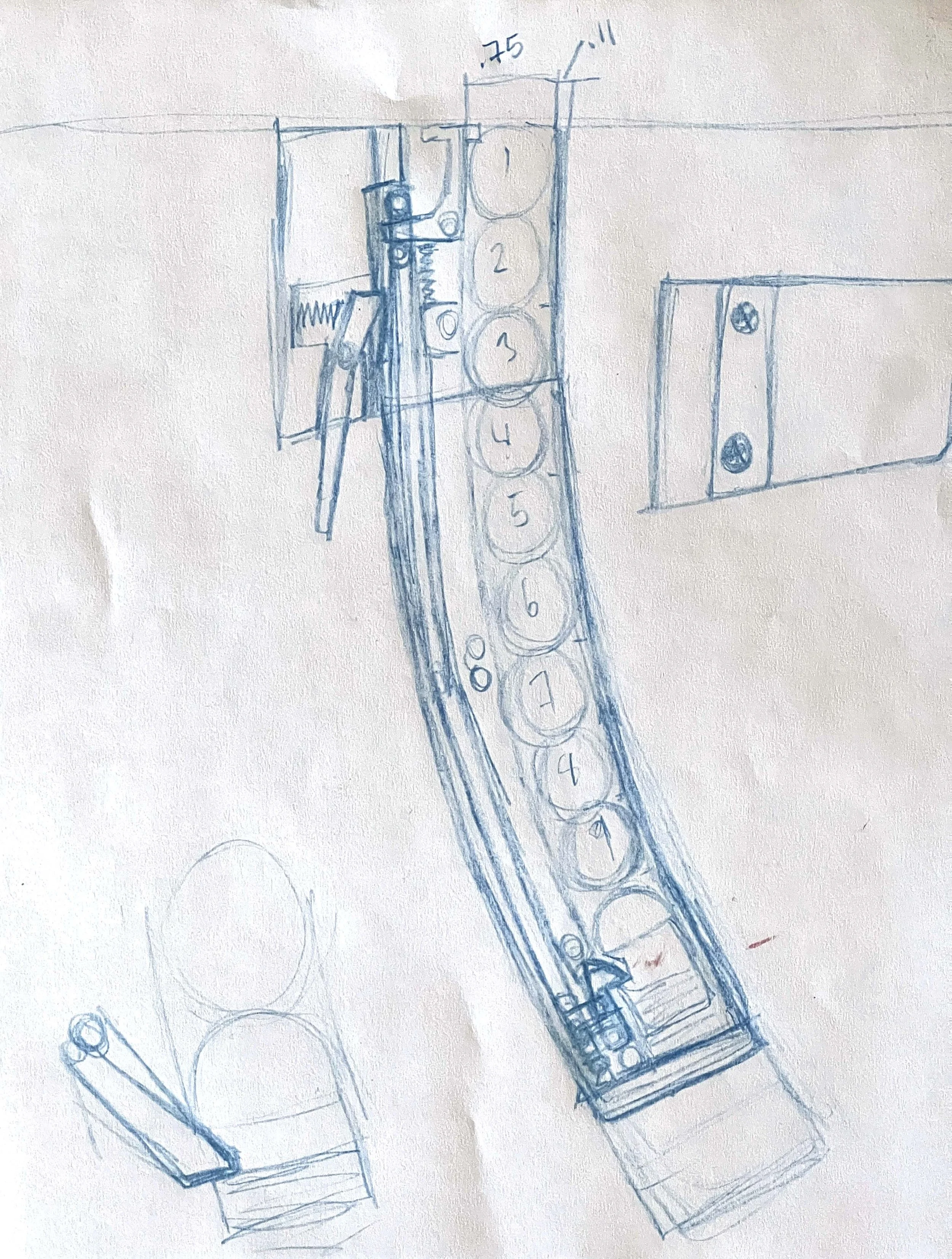

Initial sketch figuring out the main body and mechanisms.
Comparison.

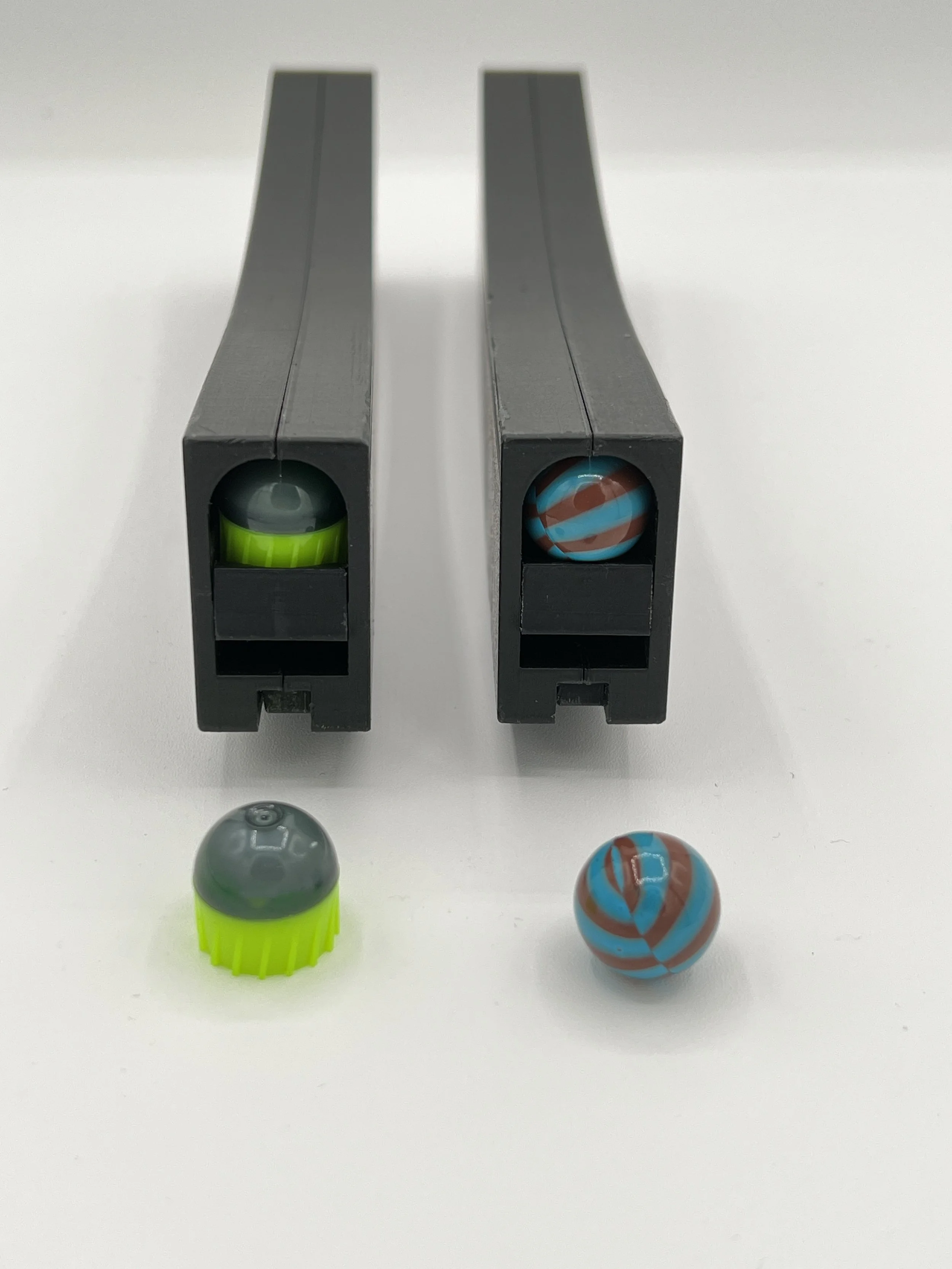

Standard clip on the left, new slim mag on the right. The New magazine can accommodate both traditional roundball paintballs and the more accurate First Strike rounds (ten each).
